BOYA BY-WM8 Pro-K2 is an upgraded UHF Dual-Channel Wireless Microphone System

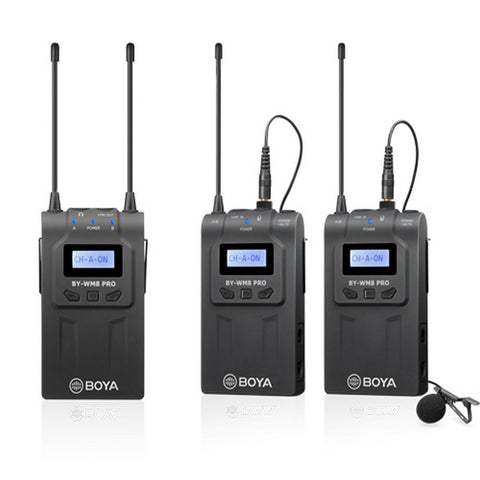

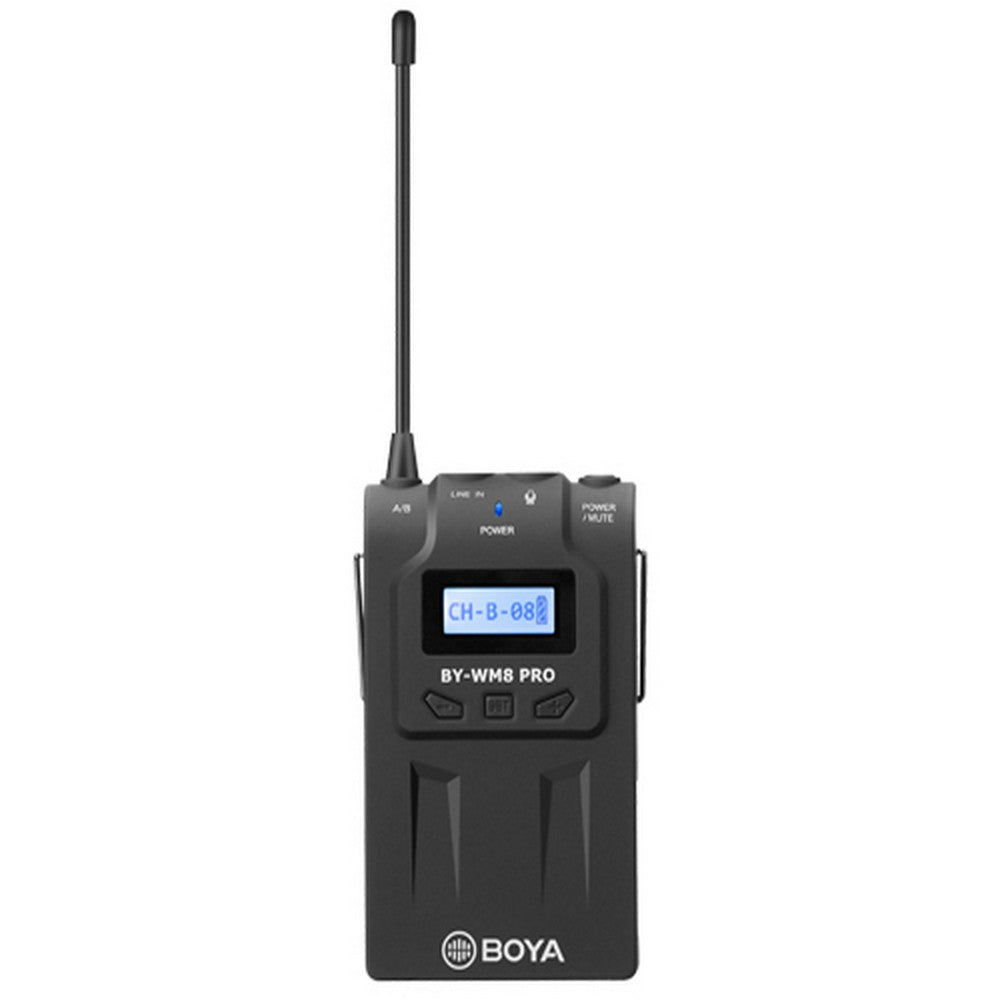

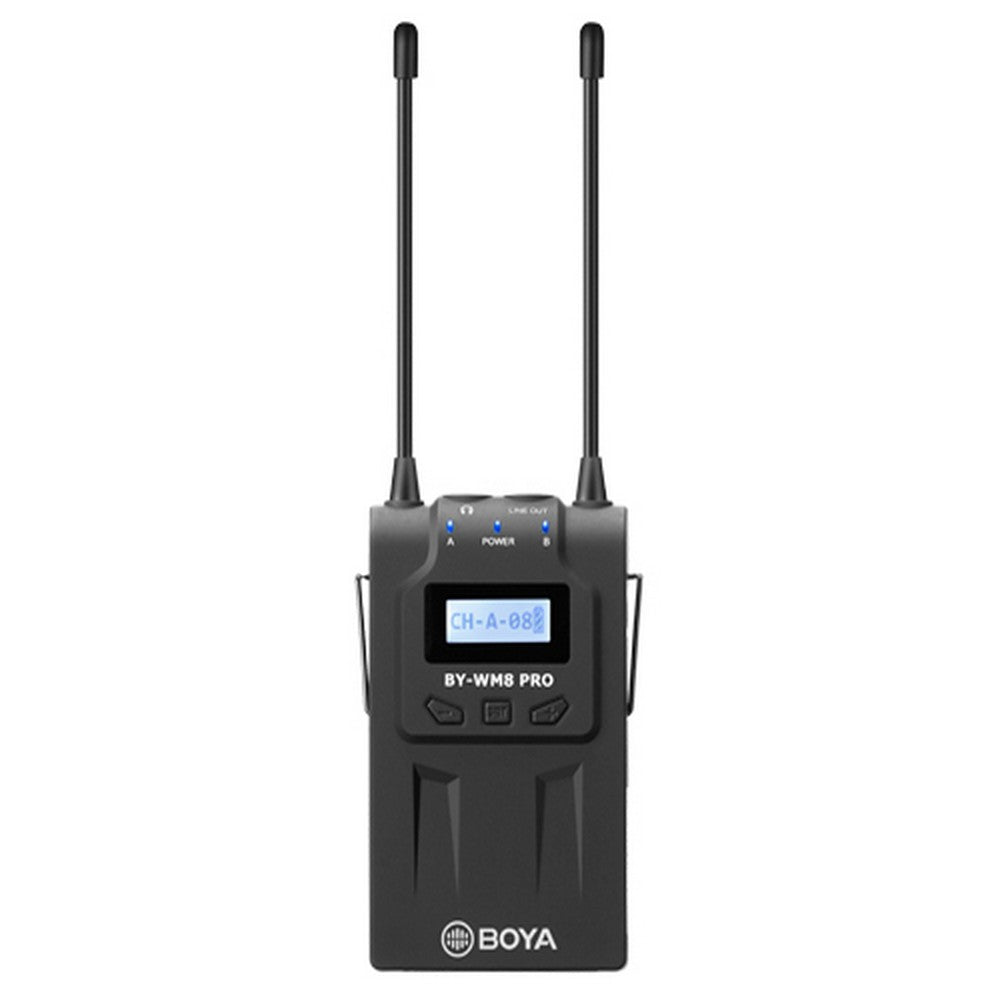

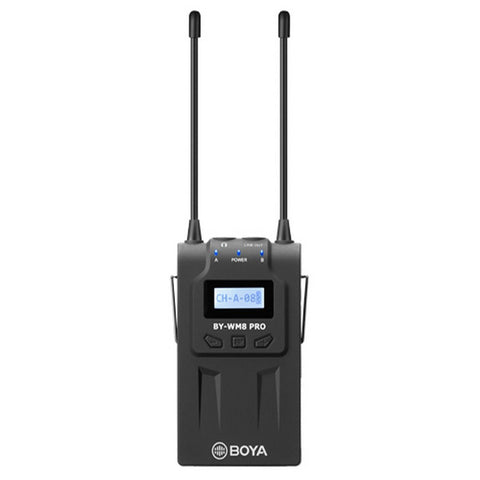

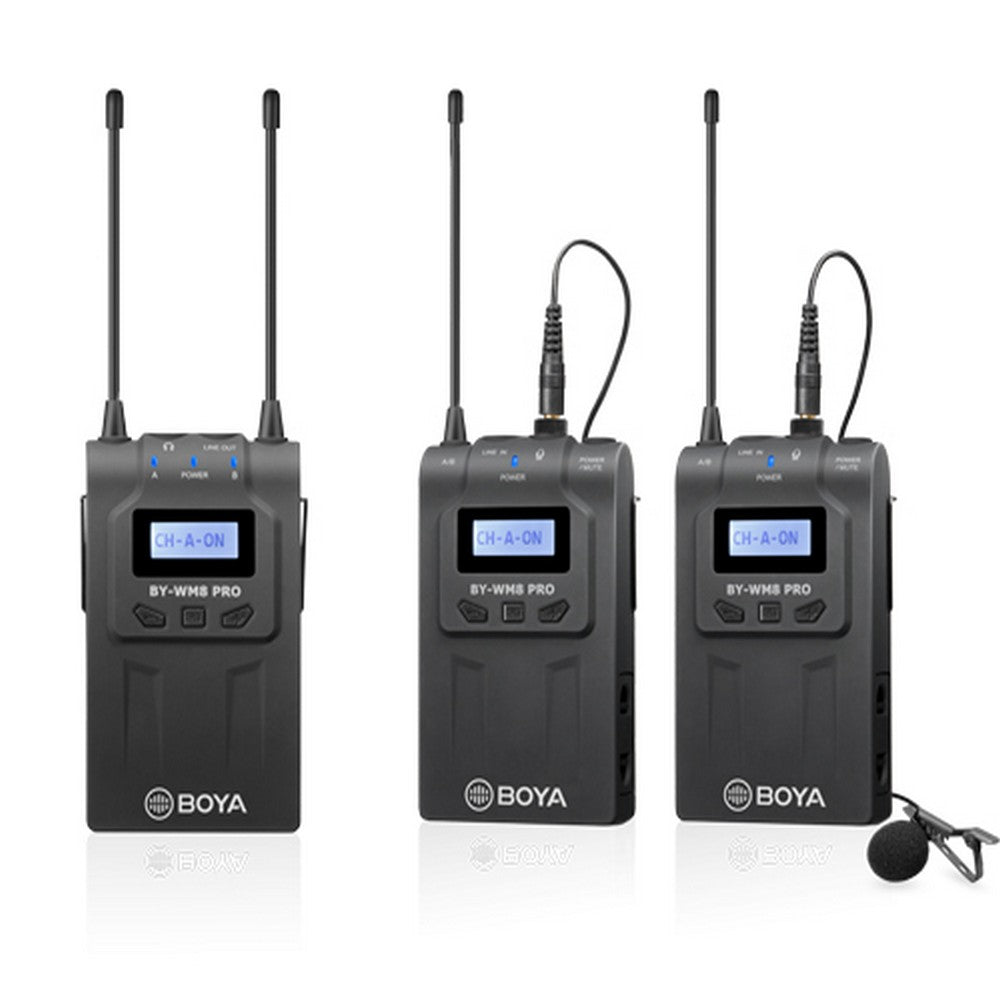

The BOYA BY-WM8 Pro-K2 is an upgrated UHF Dual-Channel Wireless Microphone System for capturing audio with dual subjects, features an easy-to-read LCD display, a wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry. The BOYA BY-WM8 Pro-K2 package is suitable for a wide range of wireless applications such as interviews, electronic news gathering (ENG), electronic field productions (EFP), film production, business and educational applications, and more. The BY-WM8 Pro-K2 system consists of two bodypack transmitters, a camera-mount receiver, and two omni-directional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case. The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack. Digital Companding, Up to 48 Selectable channels, Dual-Channel, Up to 32 MHz of transmission bandwidth, Easy and flexible wireless synchronization between transmitter and receiver via infrared, User-friendly menu operation, Muting function, Wide range of accessories adapts the system to most of requirements, Locked-plug avoids accidental changing of settings, Transmission Range: up to 100 meters.
Note: To save battery life, if only use one transmitter, please turn OFF the other channel from receiver.
Features:
Dual-Channel Wireless Receiver
48 Selectable UHF Channels
Broadcast-Quality Sound
Includes Two Transmitters and One Receiver
Selectable Stereo and Mono Mode
Mic and Line-in
Selectable Mute function
Easy-to-read LCD displays
Automatic LCD-locked Function
Monitoring sound by headphone output (Receiver)
Operation range can reach up to 100m(300') (without obstacle)
Two AA batteries for both transmitter and receiver
Specifications:
Oscillator type: PLL Synthesized Control Oscillator Carrier
Frequency Range: 576.4 MHz 599.9 MHz
Transmitter: A 568.6 MHz ? 592.1 MHz B
Channels: 48
Frequency response: 40 Hz to 18 kHz (+/-3dB)
Operation Range: 100m (300) without obstacle
Operating Temperature: 14 F to 122 F (-10C to +50C)
Storage temperature: 14 F to 131F (-10C to +55C)
